How to install built-in louver insulating glass

2021-05-08

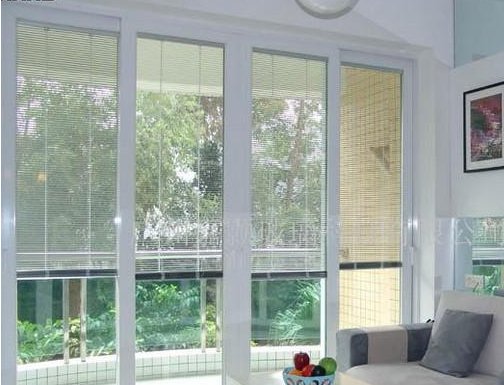

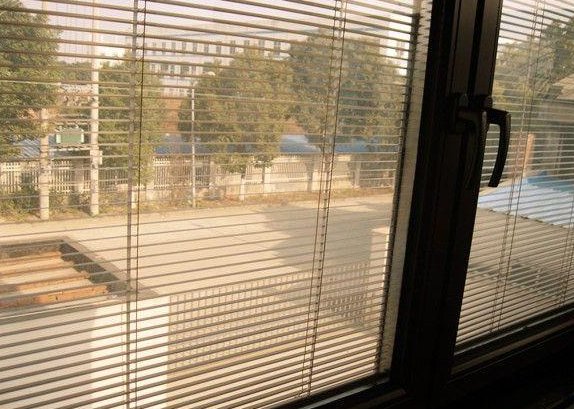

Insulating glass built-in shutters are built-in aluminum shutters in double-layer tempered glass to control the light entering the room. It not only retains the beautiful and practical characteristics of the shutters, but also overcomes the shortcomings of cleaning. It has gradually become the most basic configuration of ordinary houses. It is also the most important factor affecting lighting, ventilation and comfort. So, how should the built-in louver insulating glass be installed?

How to install blinds?


Measure the size of the outer frame: Measure the width of the outer frame of the window from left to right, and the widest size of the upper, middle and bottom of the window is the suitable width of the outer frame. Measure the height of the outer frame of the window from top to bottom, and the maximum size of the left, middle and right of the window is the suitable height of the outer frame.


Measure the size of the inner frame: Measure the width of the inner frame of the window from left to right, and subtract 1cm from the minimum width of the upper, middle and lower window, which is the suitable width of the inner frame. Height Measure the height of the inner frame of the window from top to bottom, and the minimum height of the left, middle and right windows is the suitable height of the outer frame. Make sure that the window depth is enough for the shutter blades to move freely. Different shutter installation methods require different window depths. 8cm depth is required for fixed or swing installation. In addition to the width of the product blade, the number of layers of the product to be installed should also be considered during push-pull installation. Generally, two-layer push-pull needs 15cm depth to ensure blade movement, single fan needs 10cm depth; folding installation needs to reserve 10cm depth.


Installation method: If the blinds are installed in a fixed way, it will bring inconvenience to cleaning the window glass. Generally, fixed installation is not selected. The flat opening method has the characteristics of good sealing, and is suitable for the installation of small windows or single or double windows. The push-pull method takes up less space and is suitable for the installation method of general windows. The folding method is suitable for opening multiple windows, and is generally used for partitions or floor-to-ceiling windows.


Shutter installation precautions


If the blinds are installed as fixed, it will bring inconvenience to cleaning the window glass. Generally, fixed installation is not selected. The flat opening method has the characteristics of good sealing, and is suitable for the installation of small windows or single or double windows. The push-pull method takes up less space and is suitable for the installation method of general windows. The folding method is suitable for the opening of multiple windows. Generally, the inner frame is used for partition or floor-to-ceiling windows.
